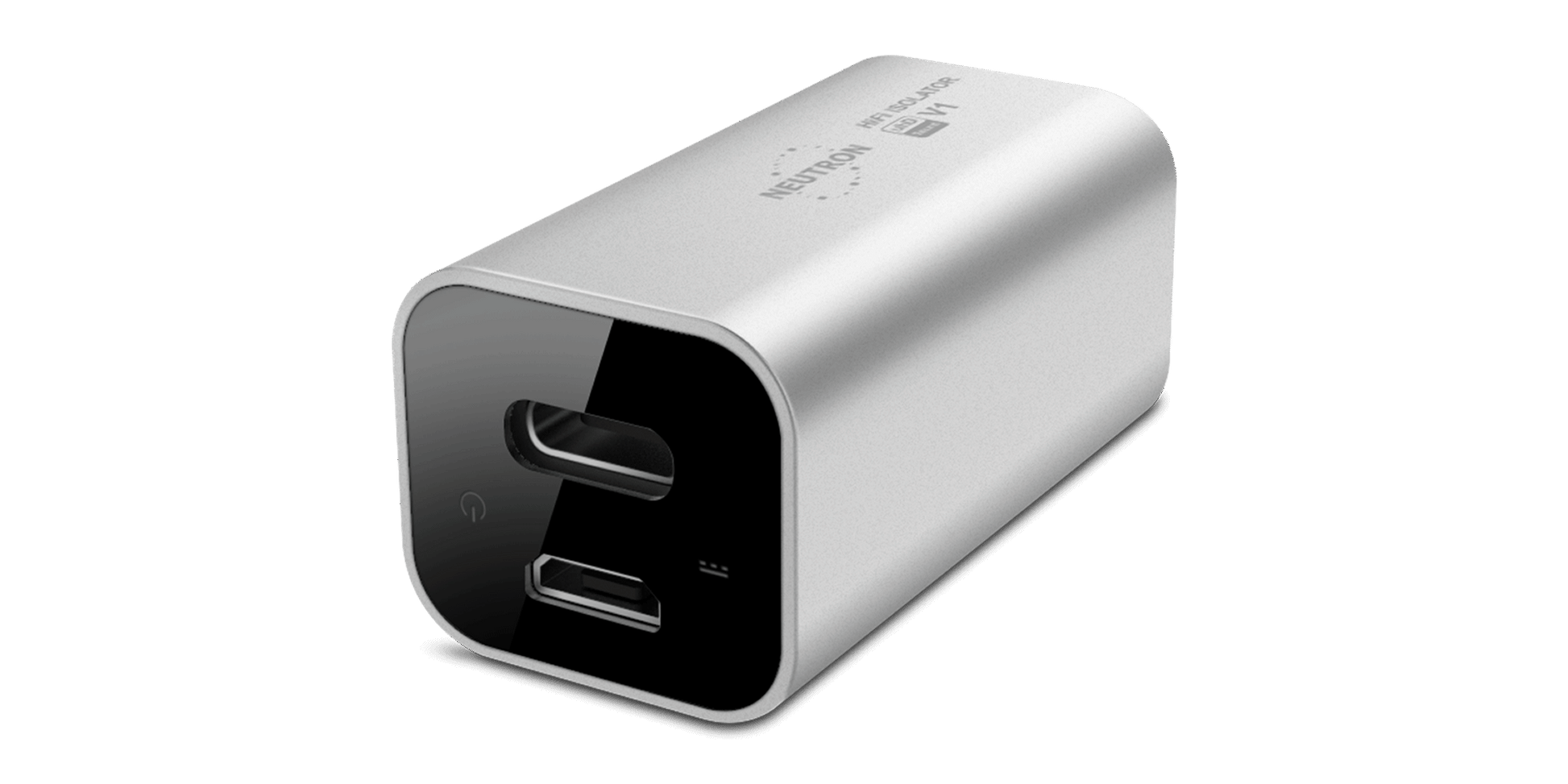

Neutron HiFi Isolator V1: IP67 High-Speed USB Galvanic Isolator

Neutron HiFi™ Isolator V1 (aka Virtuoso 1) is a compact, rugged, and highly effective solution to eliminate noise and power surges from your USB audio setup via the complete galvanic isolation of USB bus between connected devices. Its IP67 rating ensures durability and protection against water and dust, making it perfect for studio and live performance environments.

Its design is perfectly suitable for consumer (isolation of audio equipment, USB DACs from PC) and industrial (isolation of sensitive equipment, sensors) use.

Check out details on the device page.

Key Features:

• Galvanic Isolation: Completely isolates your device from the USB bus, eliminating ground loop noise, shared/common ground noise, humming noise, and other digital and power-related disturbances.
• Clean VBUS power: Generates battery-like, ultra-low noise VBUS power for your USB device allowing it to work easily and without any noise issues, whether it is a USB DAC, oscillator, debugger, industrial sensor or anything else.
• Robust Protection: Safeguards your valuable equipment from power surges and spikes, ensuring longevity and reliability.
• Ultra-Portable Design: Compact and lightweight, making it easy to carry and use anywhere.
• High-Speed Performance: Maintains high-speed USB data transfer for seamless audio playback and recording.
• Wide Compatibility: In relation to digital audio, it is compatible with any USB DAC with formats up to 8-channel 32-bit 1.536 MHz PCM and 8-channel DSD1024. In general, it is compatible with any USB device.

Ideal for:

• USB DACs: Achieve pristine audio quality by isolating your DAC or DAP from PC noise.
• Guitar Processors and Synthesizers: Enhance your tone and eliminate unwanted noise and interference.
• Sensitive Measurement Equipment: Protect your equipment from power fluctuations and electromagnetic interference.

Consider protecting your device with Neutron HiFi™ Case for Neutron HiFi™ Isolator V1.

We recommend using Neutron HiFi™ DAC V1 with Neutron HiFi™ USB Cables for the best performance.

Get special USB-C OTG cable if you intend to plug Isolator V1 to USB-C port of your host (PC, Laptop).

Do not miss opportunity to get USB-C to USB Micro-B cable which can deliver optional external power to Isolator V1 when connecting USB devices with high power consumption (over 0.4A).

Free shipping for US$210+ order

Price includes VAT and import duties

Shipping: Always DDP. There is no Customs clearance for any buyer in Neutron HiFi online store, whether you are from EU, USA, UK or any other place. All orders are shipped on DDP basis, it means you just get package delivered to your address without any additional action from your side.

Get 5% off 2nd device (DAC, Isolator)

Get 20% off a special USB-C OTG cable

Get 70% off a USB-A/Micro-B 1m cable

Get 10% off 2nd USB cable

Designed in Europe.

Specification

Input

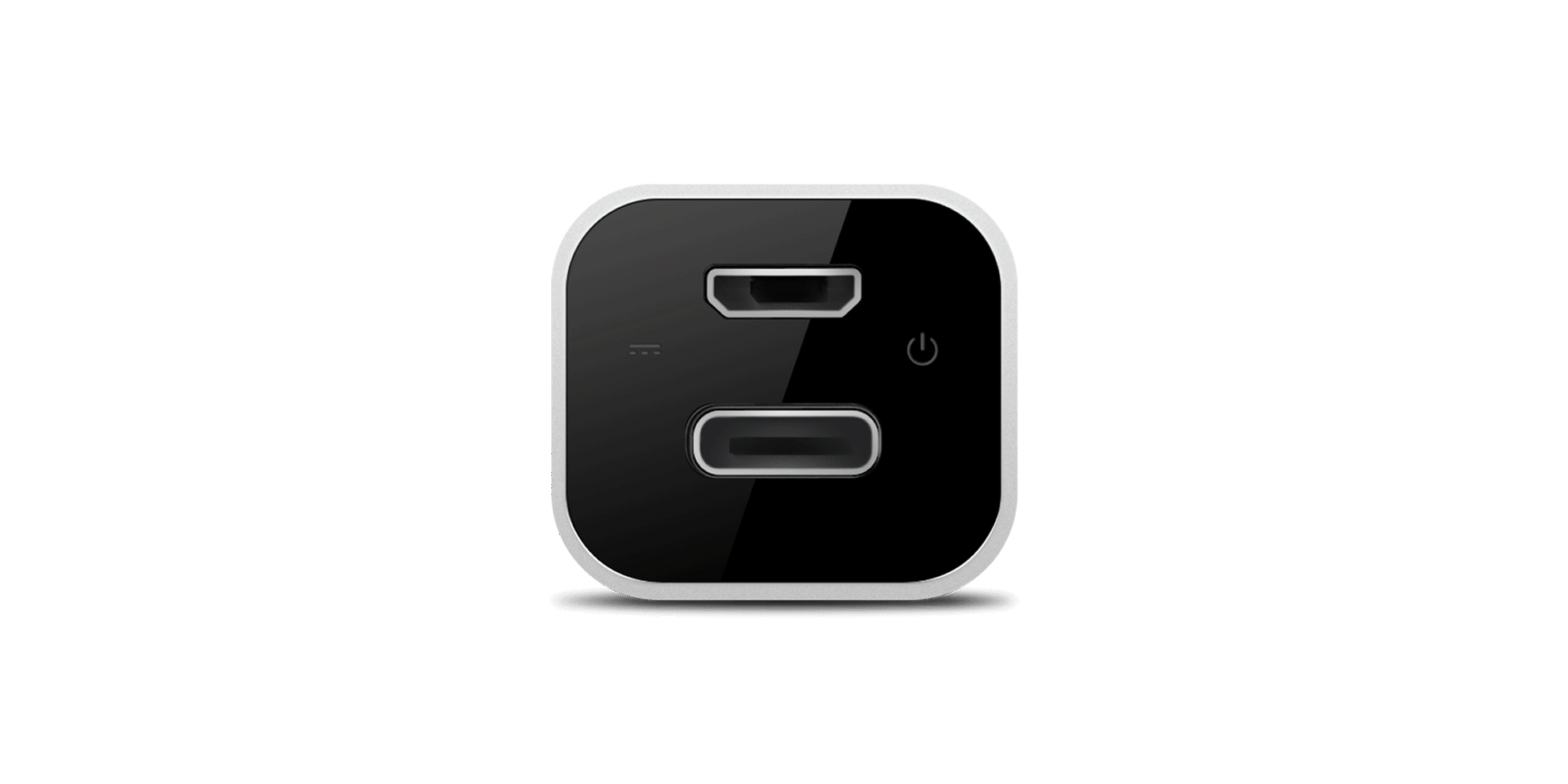

USB-C™ jack Data/Power, USB Micro-B External Power

Output

USB-C™ jack

Speed

High Speed (USB 2.0, 480 Mbps)

Power

2W (0.4A, 5V connected only to hosts's USB port), max 15W (3A, 5V external optional power provided via USB Micro-B port)

Parasitic Capacitance

Ultra-low (20-22pF)

Isolation

Galvanic: 3kV DC Power, 5.7kV RMS Data for 60 seconds

USB Data Re-clocking

Ultra-precise at wide temperature range

IP Rating

IP67

Operating Temperature

−40°C to +70°C

Materials

Aluminum (enclosure), Gorilla Glass 3 (side panels)

Color

Silver or Iron Grey

Dimensions

Ultra small size: 40.3 x 22.3 x 20 mm (L x W x H)

Weight

30 gr

Find out more details on device's product page.
