Neutron HiFi™ DAC V1 | Portable USB DAC and Preamp with DSP (PEQ, Crossfeed, ...)
Neutron HiFi™ DAC V1 | Portable USB DAC and Preamp with DSP (PEQ, Crossfeed, ...)
Couldn't load pickup availability
Neutron HiFi™ DAC V1 is a portable USB DAC that delivers high-resolution audio. It supports PCM up to 32-bit/384 kHz and DSD256, and features advanced DSP capabilities including 10-40 band per-channel Parametric EQ (PEQ), Crossfeed, Frequency Response Correction (FRC, AutoEq headset profiles), and Surround (Ambiophonics R.A.C.E). It is one highest precision USB DACs in its class according to the Audio Science Review. Check full details on device page.
Neutron HiFi™ DAC V1 offers unparalleled flexibility. Use it as a high-precision Preamp to drive your amplifier, or connect your headphones or IEMs directly for immersive listening. Built on a foundation of audiophile expertise with Neutron Music Player development, the Neutron HiFi™ DAC V1 offers exceptional sound quality and performance.
Neutron HiFi™ DAC V1 is a perfect blend of portability and performance. Its compact design belies its powerful capabilities, which can be fine-tuned with the NConfigurator app.
Consider protecting your device with Neutron HiFi™ Case for Neutron HiFi™ DAC V1.
We recommend using Neutron HiFi™ DAC V1 with Neutron HiFi™ USB Cables for the best performance.
Free shipping for US$210+ order
Price includes VAT and import duties
Get 10% off Neutron HiFi Isolator V1
Get 10% off 2nd USB cable
If your country is not in the list of destinations, let us know!
Specification
| Function | USB-C™ to 3.5 mm headphone jack audiophile audio adapter with extended DSP functionality |
| Controller | NXP K-Series |
| DAC | ES9219Q |

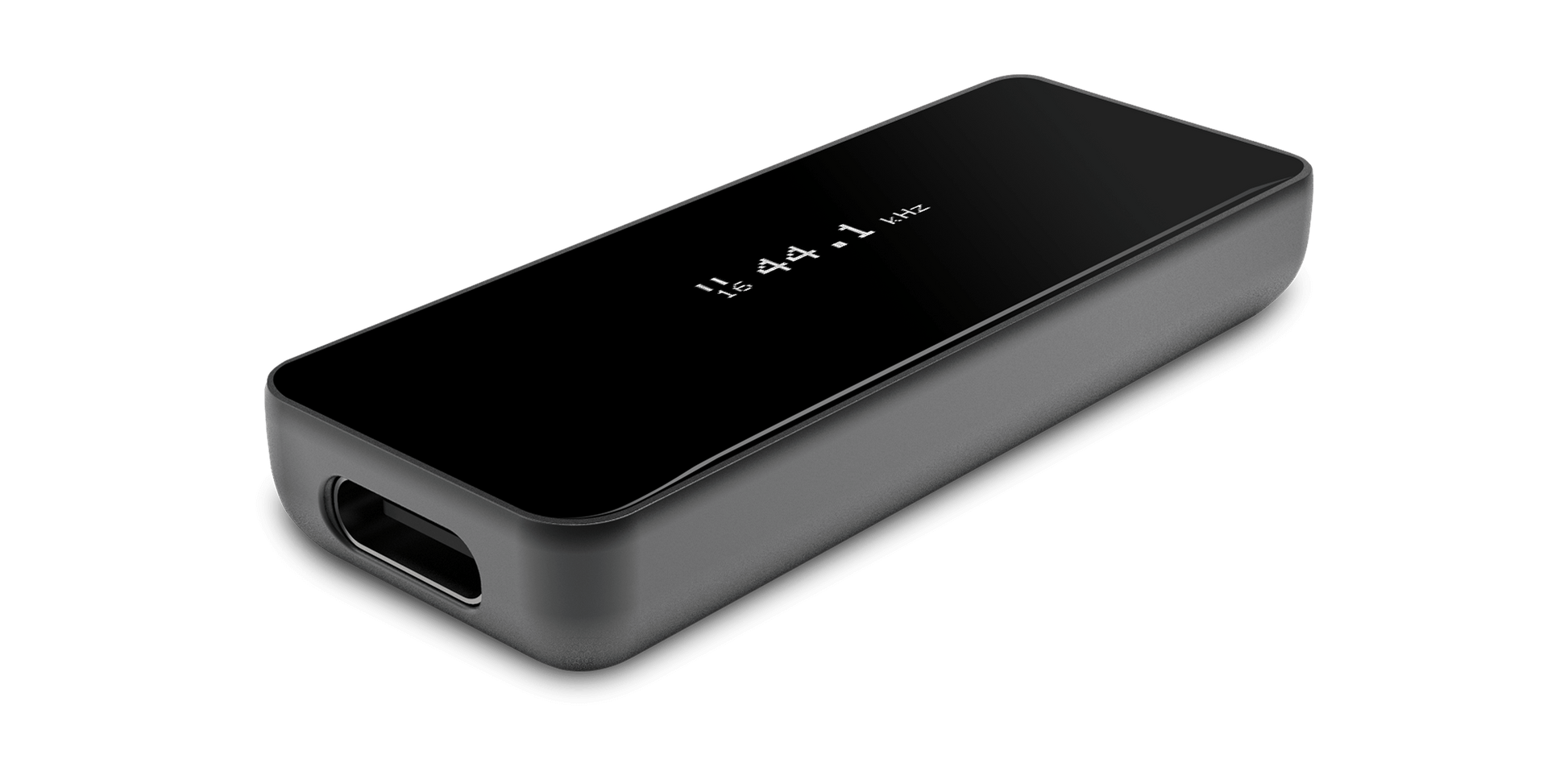

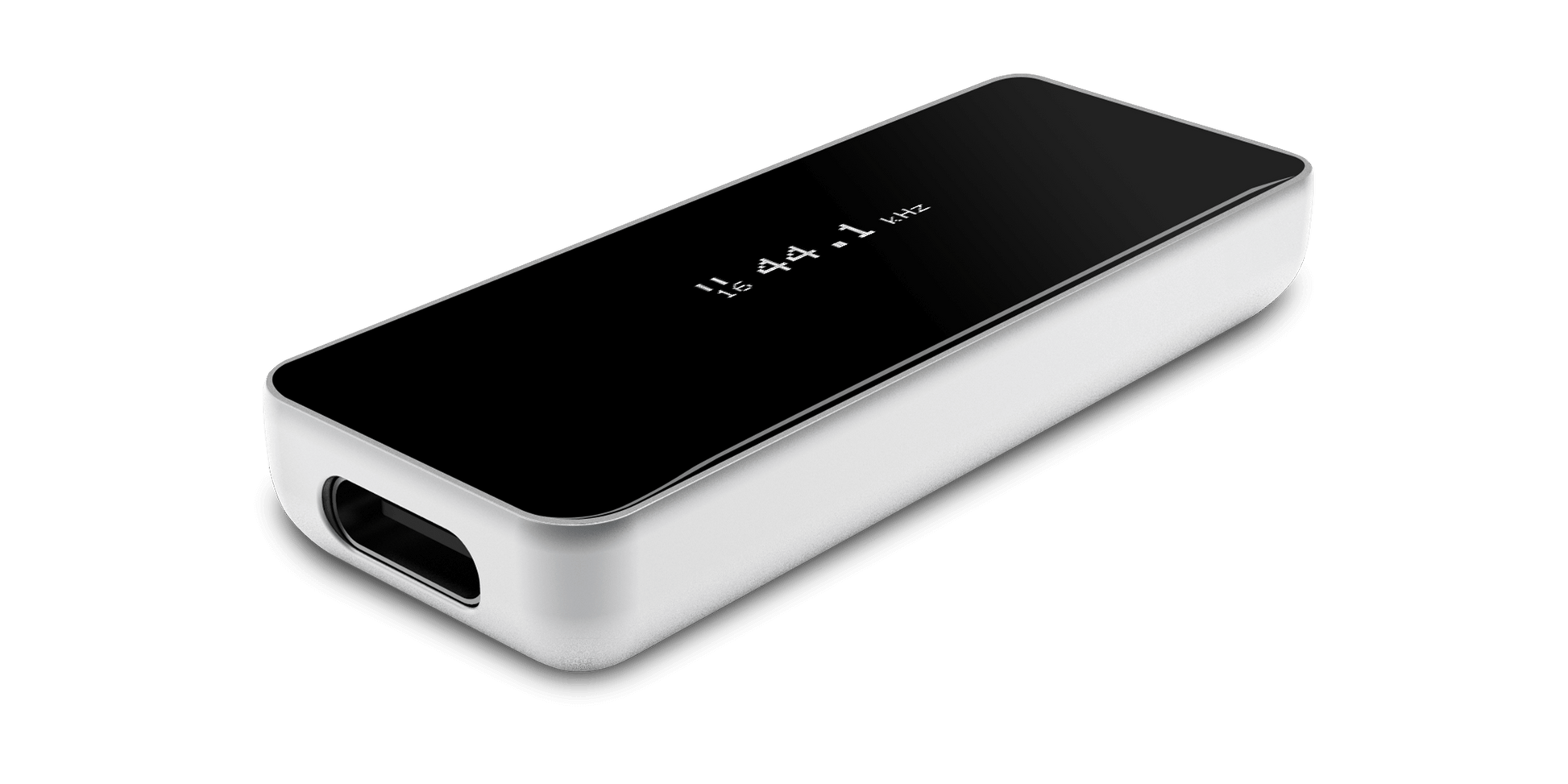

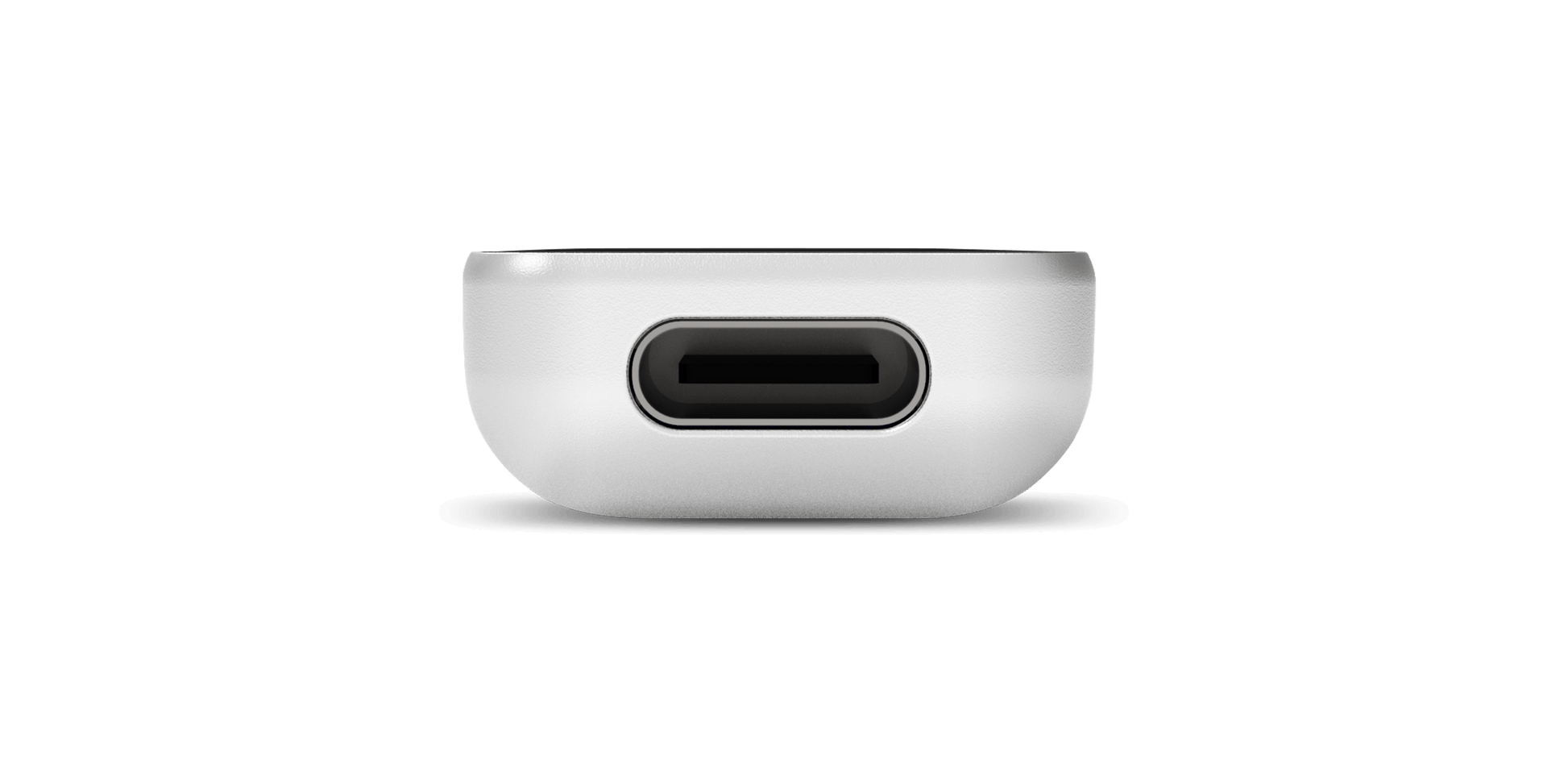

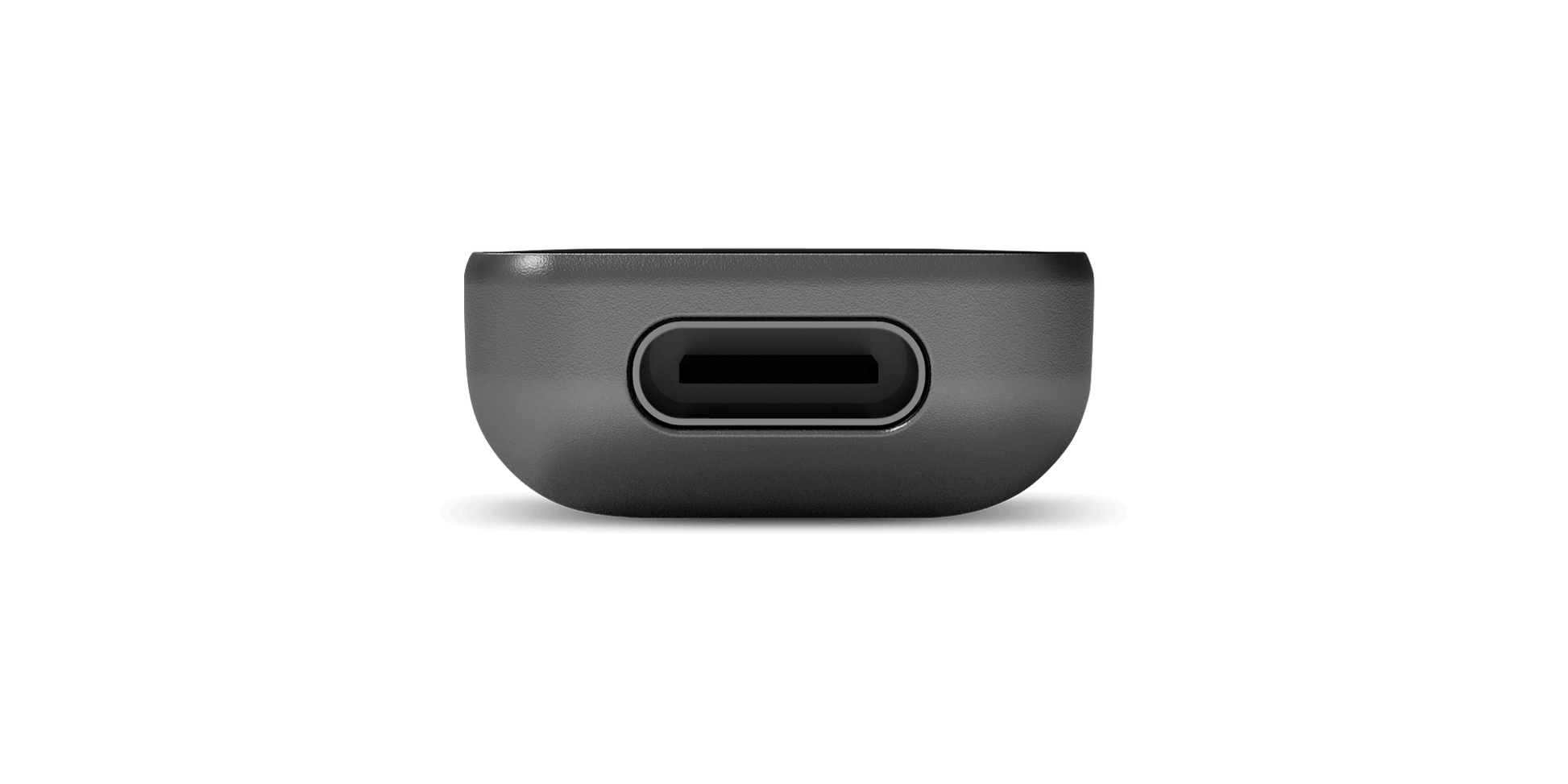

| Digital Input | USB-C™ jack |

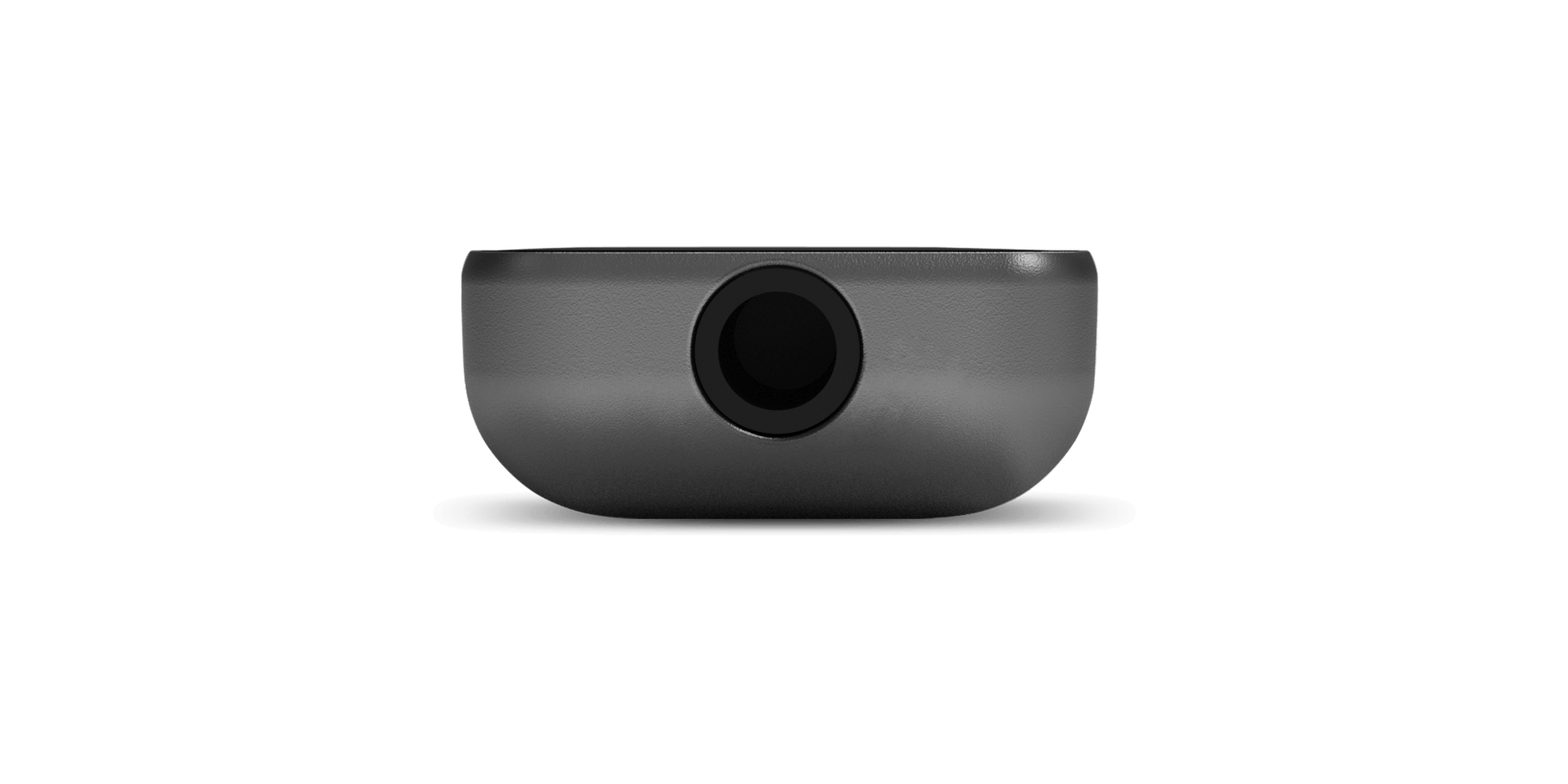

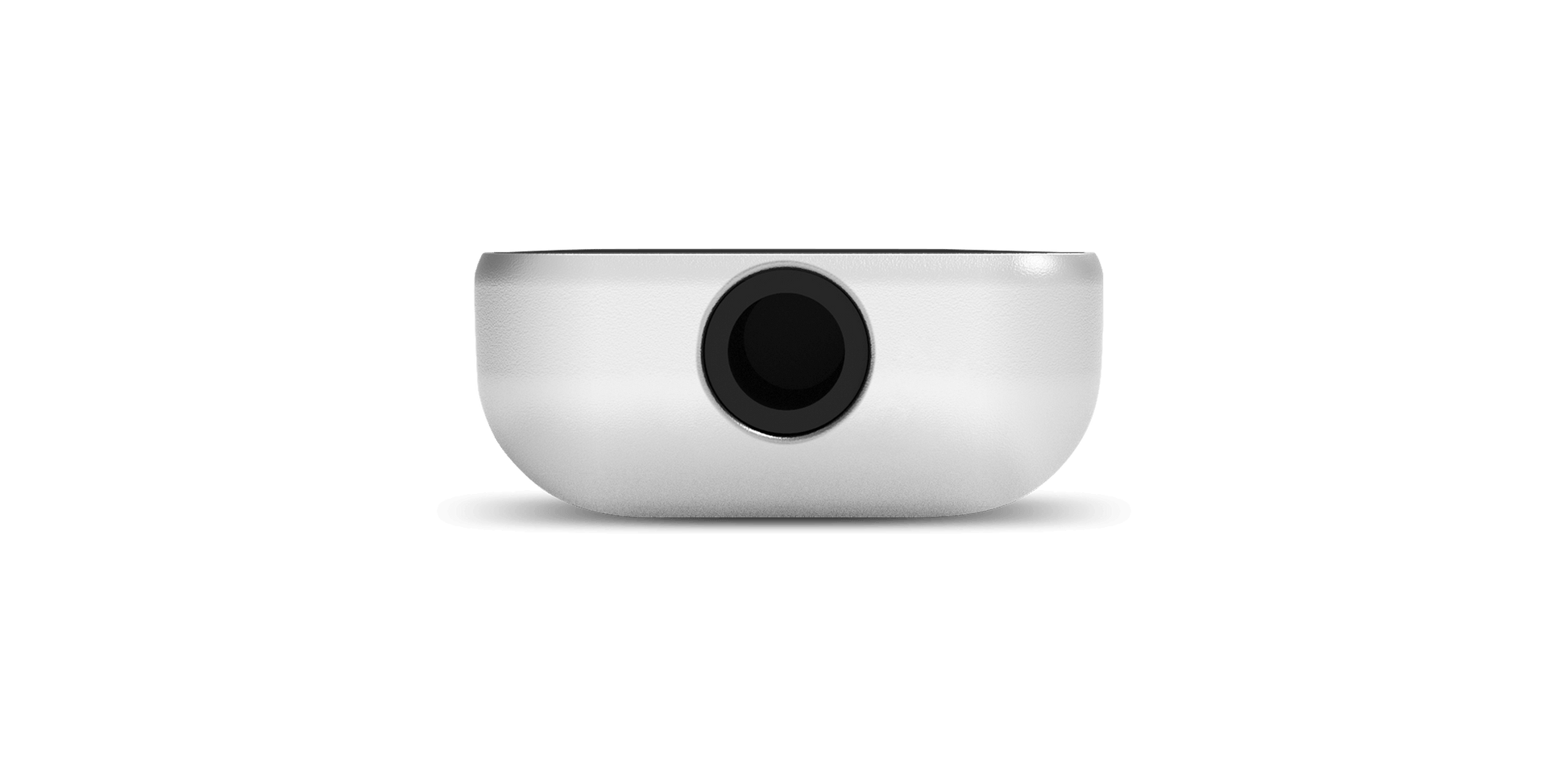

| Analog Output | 3.5 mm single-ended headphone jack (24K Gold-plated) |
| Output Level | 2 Vrms, 1 Vrms (optional) |
| Output Impedance | < 0.5Ω |
| Frequency Response | Analog performance: 0-300 kHz (all frequency components 0-192 kHz are passed without attenuation at max PCM frequency 384 kHz) |
| USB Audio | Asynchronous |
| Audio Clock | 2X ultra-low phase noise SPXO: 45.1584 Mhz [44.1, 88.2, 176.4, 352.8 kHz], 49.152 Mhz [48, 96, 192, 384 kHz] |
| Channels | 2 (Stereo) |
| PCM Bits | 16, 24, 32 |
| PCM Frequency | 44100, 48000, 88150, 96000, 176400, 191500, 352800, 384000 |
| Native DSD | 64, 128, 256 |
| DSD over PCM (DoP) | 64, 128 |
| DSP (Sound Effects) | Parametric EQ (20/10-bands, per channel) with Preamp Gain control, Graphic EQ presets, Frequency Response Correction (FRC) with AutoEq database, Crossfeed, Surround (Ambiophonics R.A.C.E.), Lossless Balance, DSP Effect Chaining |
| Headset Microphone | Supported (CTIA) |
| Headset Buttons | Supported (Play/Pause, Stop, Next/Previous Track, Voice Command, Volume +/-) |
| Media Controls | Accelerometer: 2 customizable actions (double tap top/bottom or left/right side) |

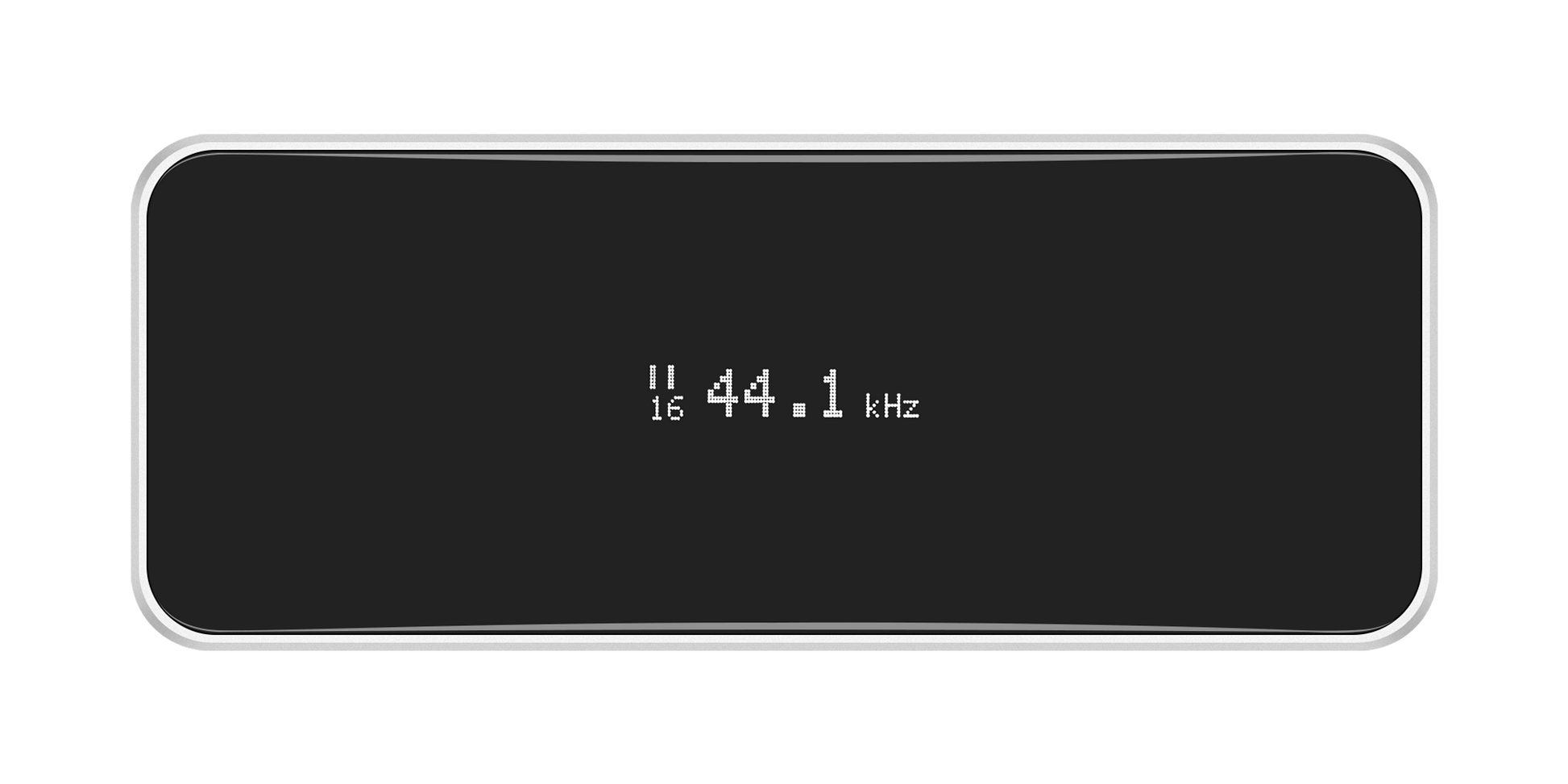

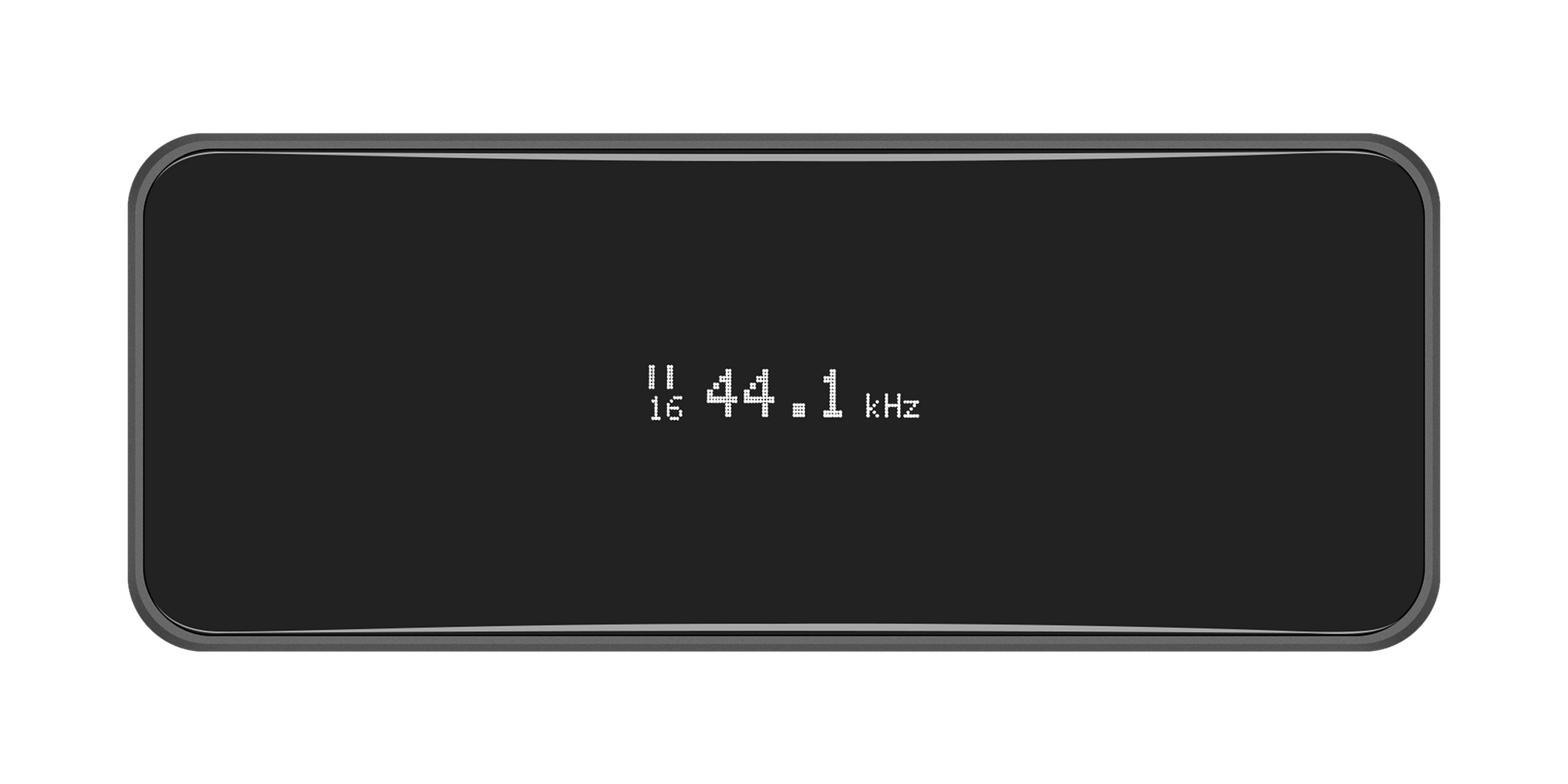

| OLED Display | Yes, with automatically rotating indication |
| Compatibility | USB-C / USB Audio 2.0, Apple iPhone/iPad requires Lightning to USB Camera Adapter for devices with Apple Lightning port |
| Firmware Update | Supported (OTA via Configurator utility) |

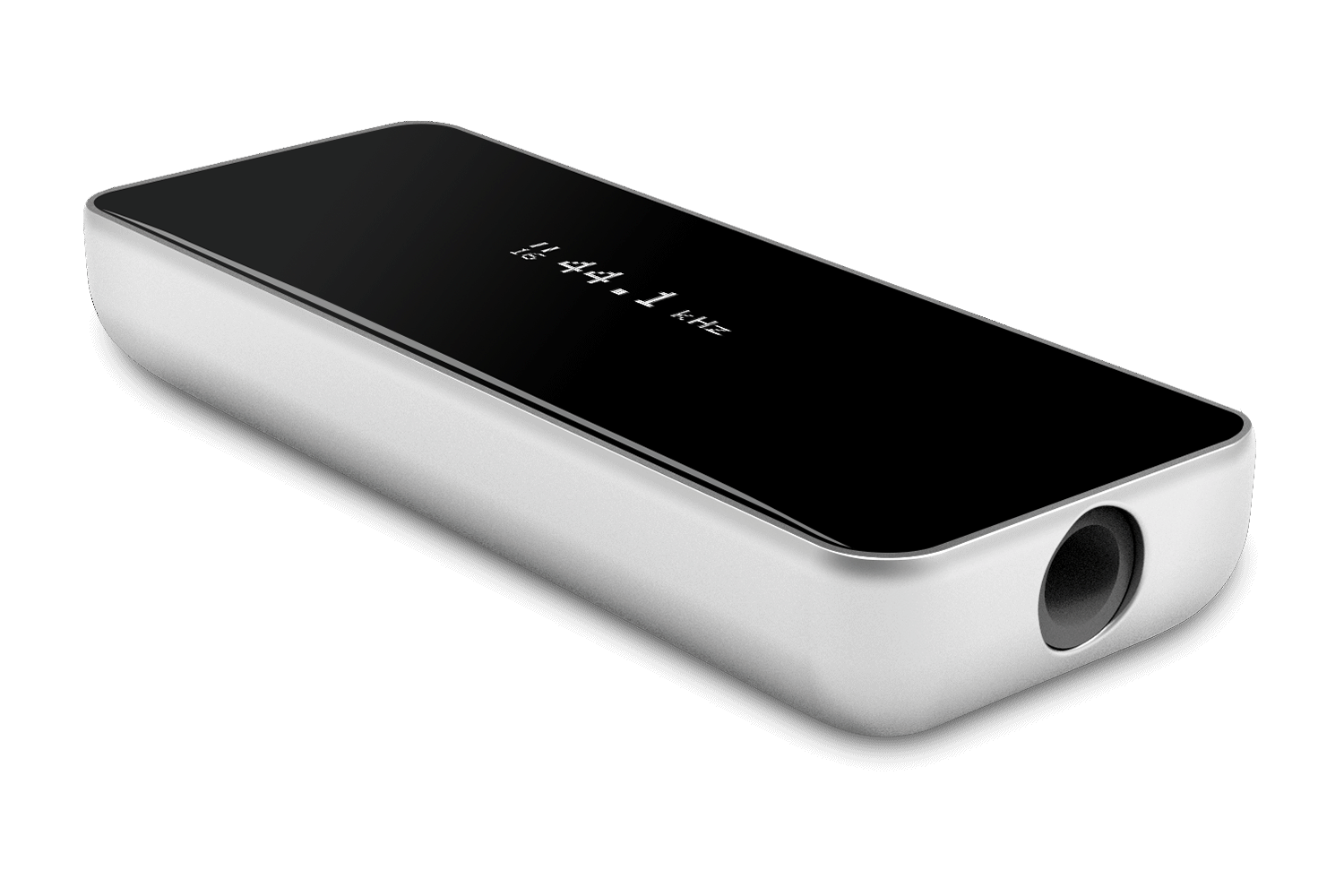

| Color | Silver or Iron Grey |
| Dimensions | 50 x 19.9 x 9.6 mm (L x W x H) |
| Weight | 13 gr |
Get more details on device's product page.
